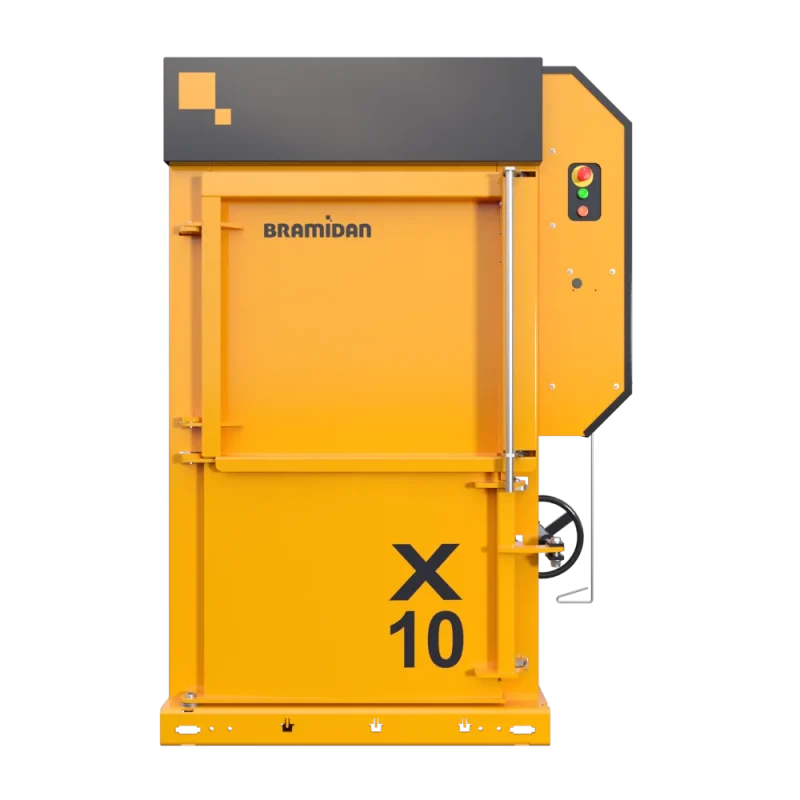

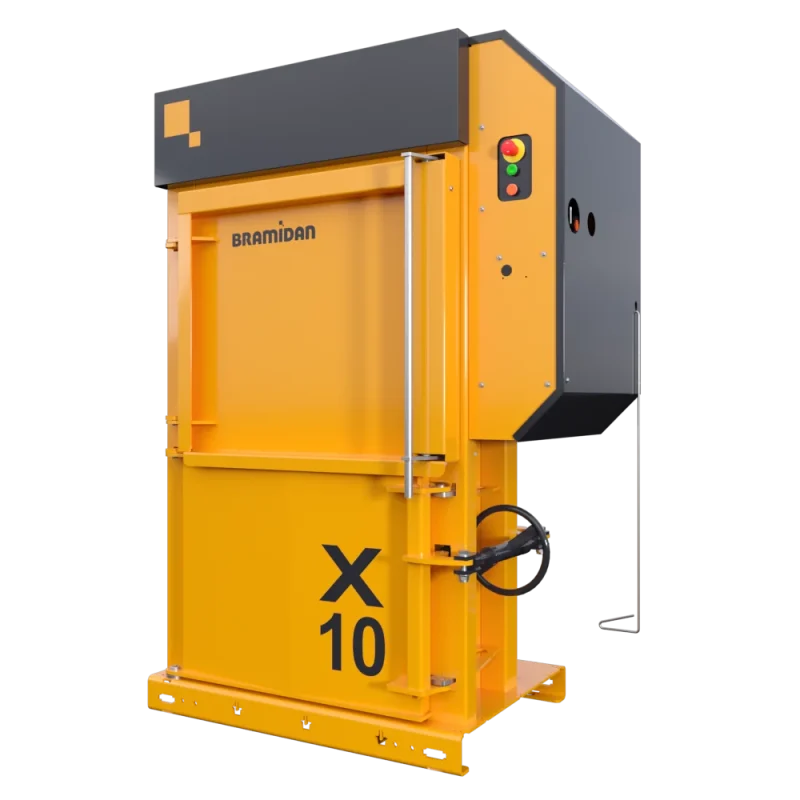

VERTICAL BALER
Baler X10
X10 is a compact baler with high capacity and performance. Ideal for settings with limited space.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler X10
Keep total overview of the exact number of bales produced, machine run-time, machine localization, etc. and automatically alert your waste collector about bales ready for pick-up.
Keep an eye on your balers with BRA-IN

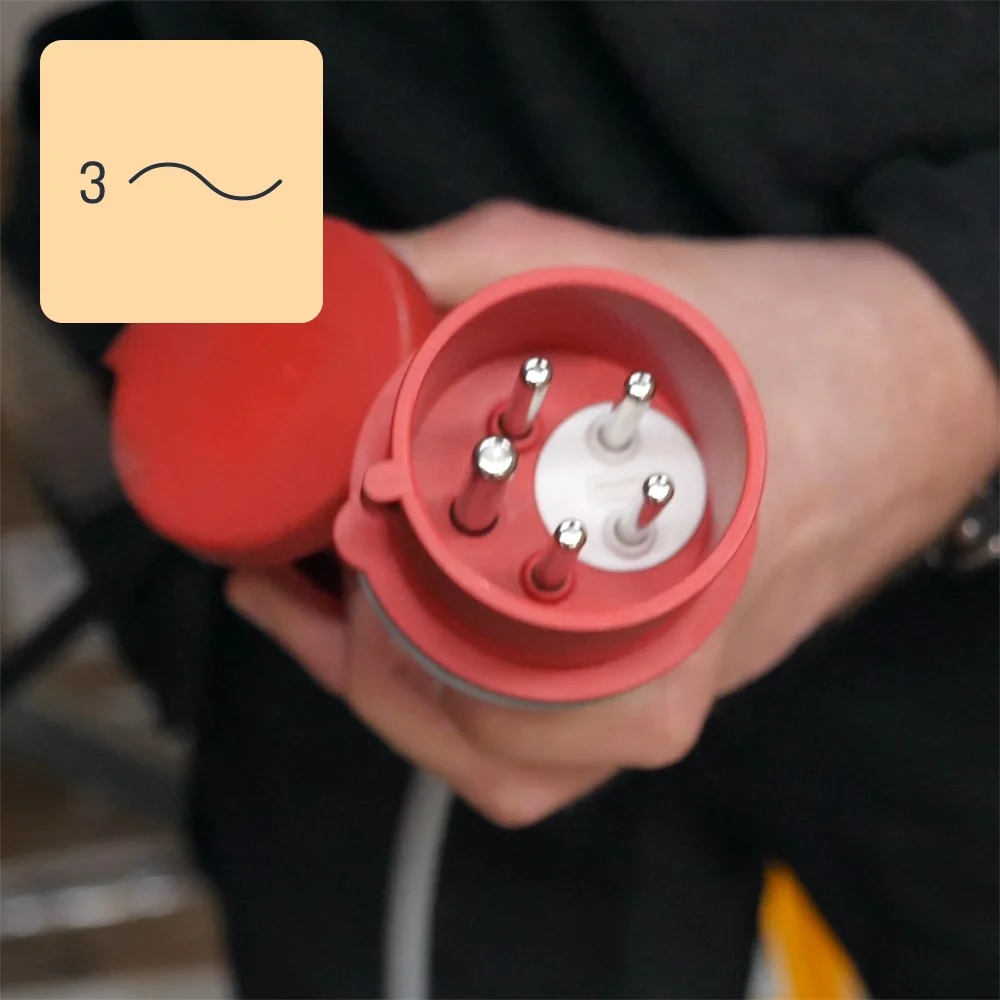

Available with three phase power supply as an option to single phase and speed up the cycle time.
Three phase power supply
Order your baler in any available RAL colour. Custom colour is not available for the top and side covers, the press plate, and the spindle. These stay our standard grey.
Other baler colours available

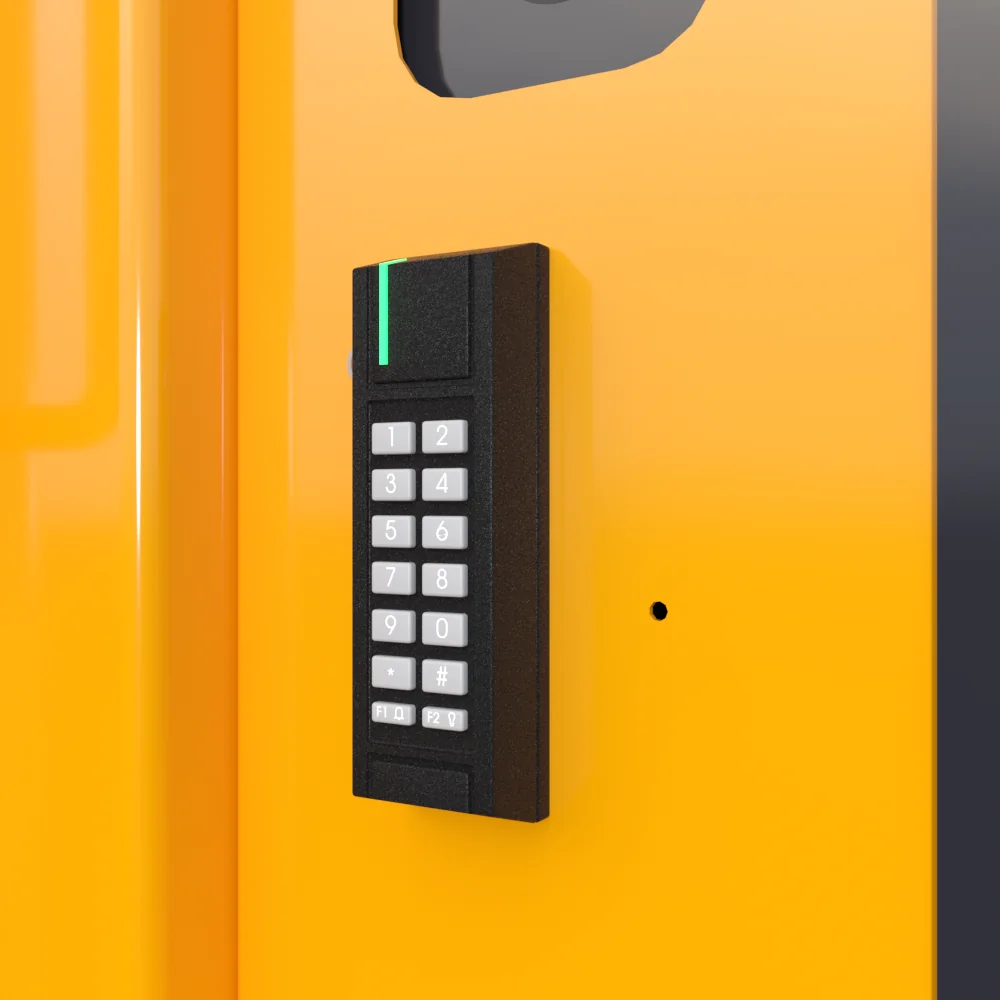

Prevent unauthorized people from operating your baler. The baler is unlocked with a personal PIN code or a magnetic key tag.
Control who operates your baler with an auto lock

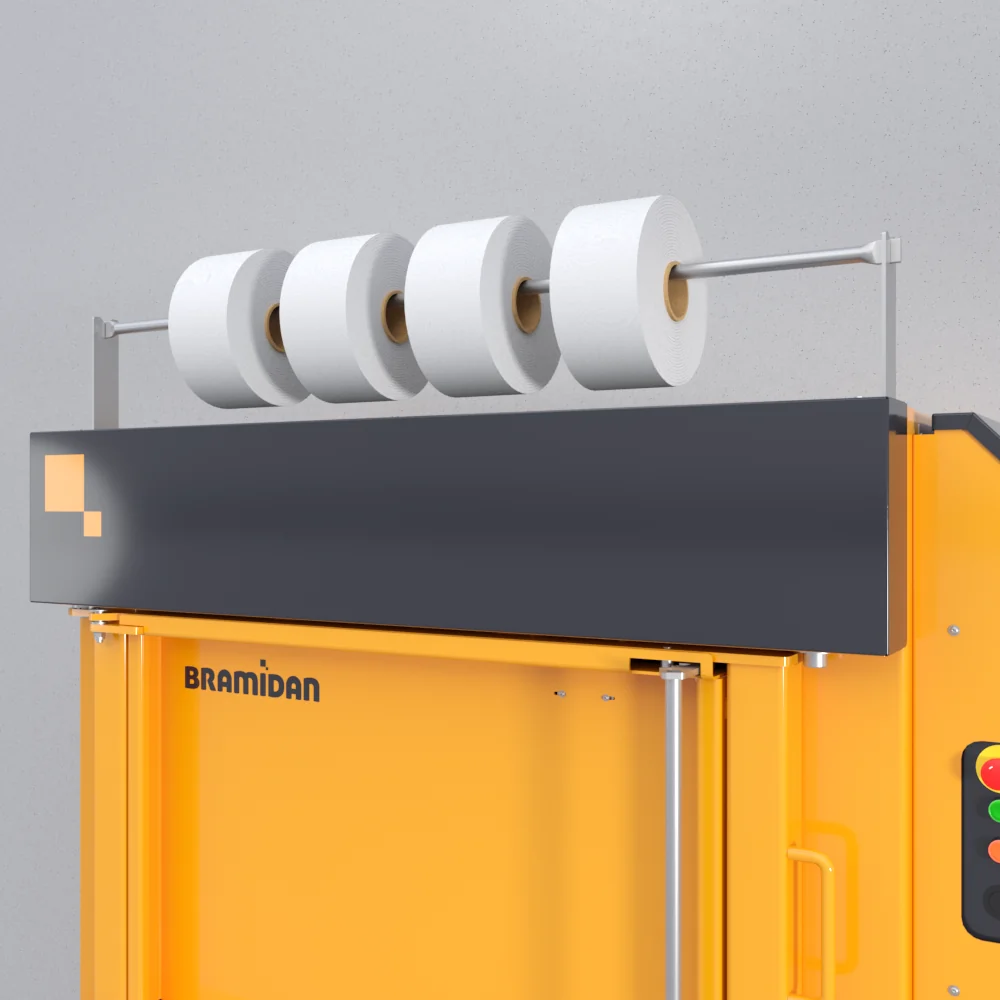

Install your baler up against the wall with top-mounted strap holder. You don’t have to go behind the baler to exchange rolls or pull straps for a new bale.
Top-mounted strap holder gives you close-to-wall baler installation

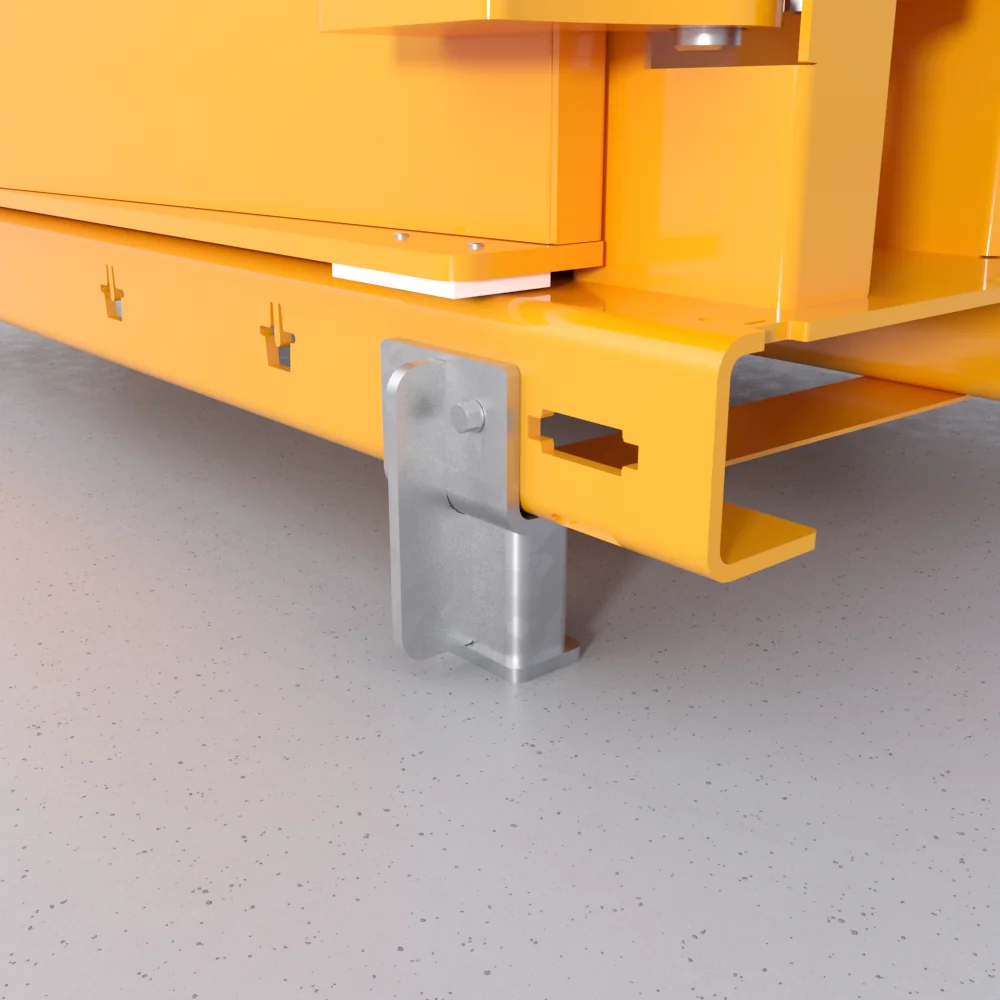

Install feet under your baler to lift it from the ground. Ideal if you need to lift the baler from the front instead of from the side.
Baler feet lets you lift your baler from the front
Quote details
VERTICAL BALER
Baler X10
Overview
How to operate
Safety
Technical specifications
Small and efficient baler
This machine has a press force that is superior compared to other balers of this size.
Ergonomic and safe operation
An easy two-button maneuver ejects the bale. This eliminates heavy lifting.
X10 – Compact baler with high capacity:
- Compact and strong
- Internal cross cylinders for a very low overall height
- Short cycle time for fast clean up
- Press force of 10 tons – a hardworking baler with high capacity
- Small base area (<1.5 m2)
- Steady compaction – keeps bales under pressure while tying
- Available with both single and three phase connection
- The lower door is safely opened with a threaded spindle
- Powder Coating provides durable finish in many colors
How does the X10 baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The X10 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 70-90 |
| Bale weight plastic foil (kg) | 80-110 |
| Press force (t) | 10 |
| Power supply | 1x230V 50Hz 10A |
| Motor (kW) | 1.5 |
| Noise Level (dB) | 59-60 |
| Screen 40 mm (m3/h) | 38 |
| Dimensions WxDxH (mm) | 1315 x 1040 x 1905 |
| Weight (kg) | 665 |
| Feed opening WxH (mm) | 800 x 610 |
| Filling height (mm) | 790 |
| Chamber height (mm) | 1295 |
| Stroke (mm) | 845 |
| Number of ties | 3 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Waste Volume
Small
FEED OPENING
800 x 610 mm
BALE SIZE
800 x 600 x 600 mm
PRESS FORCE
10 t
BALE WEIGHT
Cardboard (kg) : 70-90Plastic foil (kg) : 80-110
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
which can be harmful over time. Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
X10
59-60 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER X10
Most Common Questions & Answers
How do I know which baler model I need?
What type of equipment you need depends on a number of factors: How much waste you (approx.) generate daily, what material it is, and the volume of the material. Next step is to find out how much space you have for a waste solution.
This information, combined with your company’s structure and internal work processes, forms the basis for which tailored waste solution is the perfect fit for you and your company.
Our dedicated team of specialists can help you with this decision.
What can I compact in the Bramidan X-series balers?
Our X-series balers can compact many different materials. Besides cardboard, paper, and dry soft plastic, they can also be used for big bags, plastic bottles (PET), expandable plastic, aluminium and tin cans.
Please contact our sales team before you compact other materials in your baler.
If I am not ready to invest in a baler, can I rent one? (not COM)
Yes, all machines can be rented or leased according to agreement with Bramidan Finance. We offer a flexible rental system. After the rental period, you can buy the baler, extend the period, or get a new machine.
How many bales can I produce per hour?
Number of bales produced per hour depends on the baler. You can produce 3-4 bales for small machines, but less than 2 bales per hour for the large ones.
What kind of power supply is needed?
All balers in our range of small footprint balers use a single-phase power supply for easy installation.
Our small model X10 is standard 3-phase but is also available in a single-phase power supply.
Can I compact PET bottles?
Yes, you can. Our X-series balers can compact PET bottles.
PET material is widely known from soft drink and water bottles, but you will also find PET material used for e.g. drinking cups and smaller food containers.
Before compacting plastic bottles, you need to perforate them or take off the lids. If you don’t, the bottles will contain a lot of air and the bale will not be as tight and compact.
To make the finished PET bale more stabile when compacting in a vertical baler, we recommend that you put a layer of cardboard at the bottom and on top of the finished bale.
Did you find an answer to your questions? If not visit our FAQ universe.
