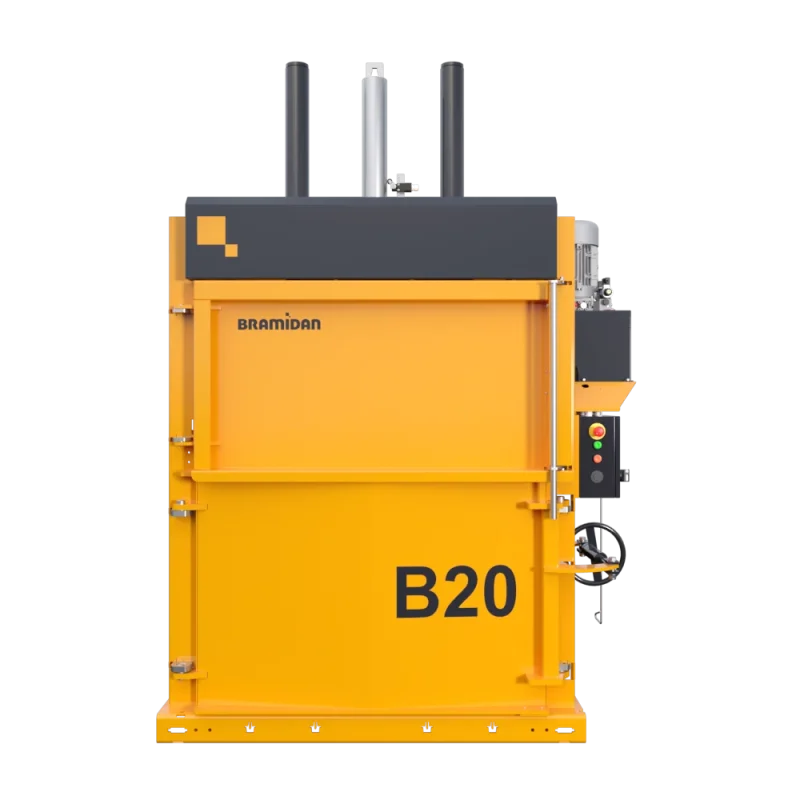

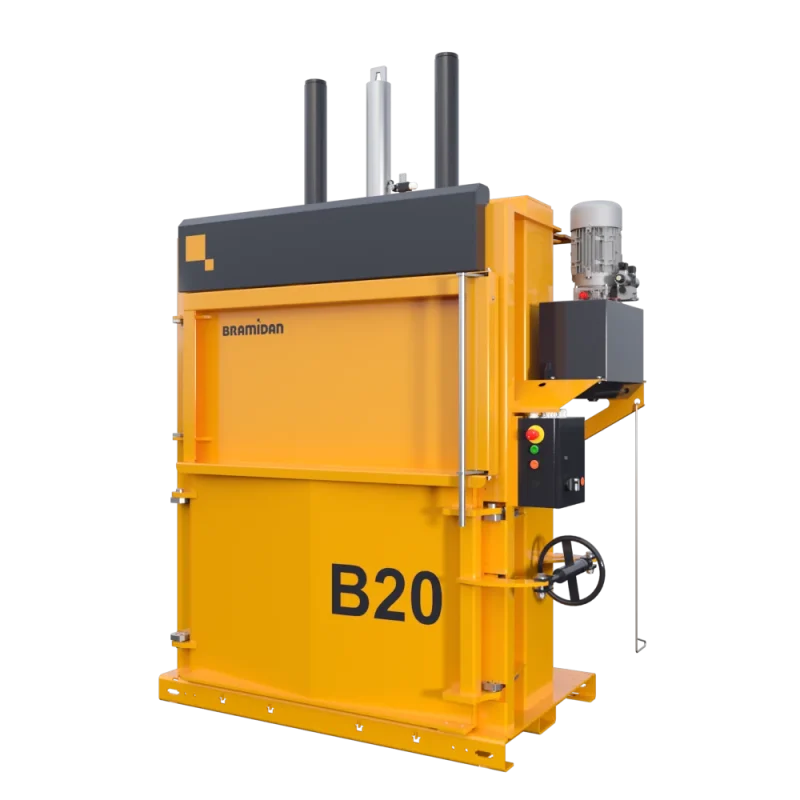

VERTICAL BALER
Baler B20
The B20 is a highly flexible machine. It is suitable for many different applications e.g. larger retail shops, stores and different industries.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B20
Keep total overview of the exact number of bales produced, machine run-time, machine localization, etc. and automatically alert your waste collector about bales ready for pick-up.
Keep an eye on your balers with BRA-IN

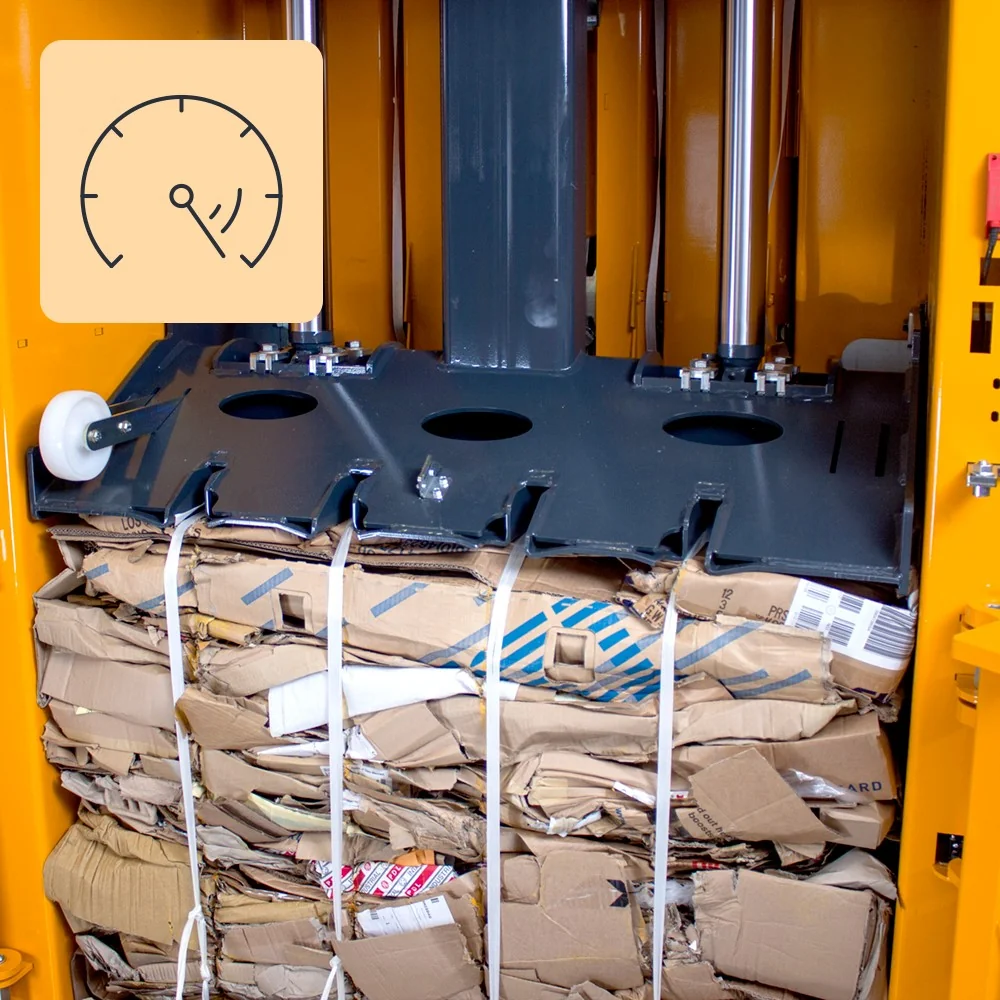

Enjoy fast clean-up of your cardboard and plastic waste. The regenerative circuit reduces press cycle time.
Reduce baler cycle time with regenerative circuit
Receive your baler in a custom colour. Available in any RAL colour. Top and side cover, press plate, and spindle stay our standard grey.
Custom coloured baler

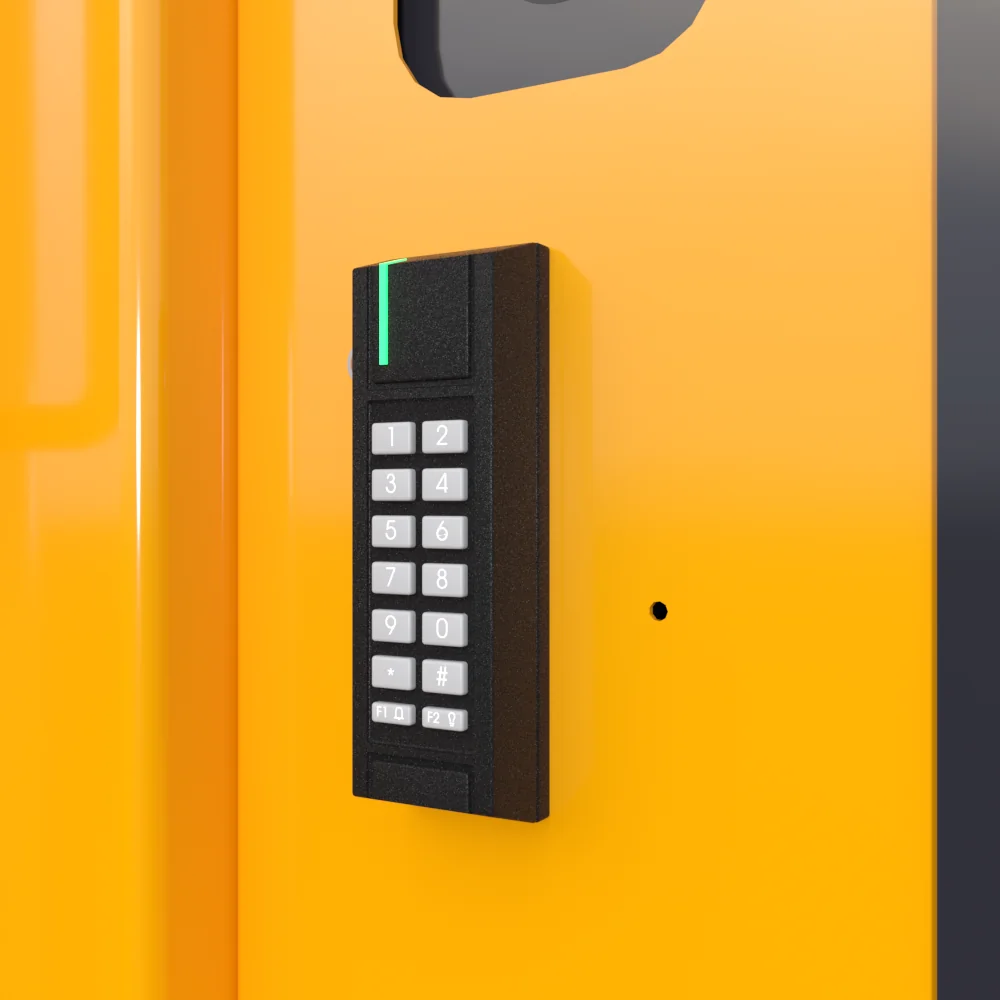

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.
Auto lock limits access to your baler

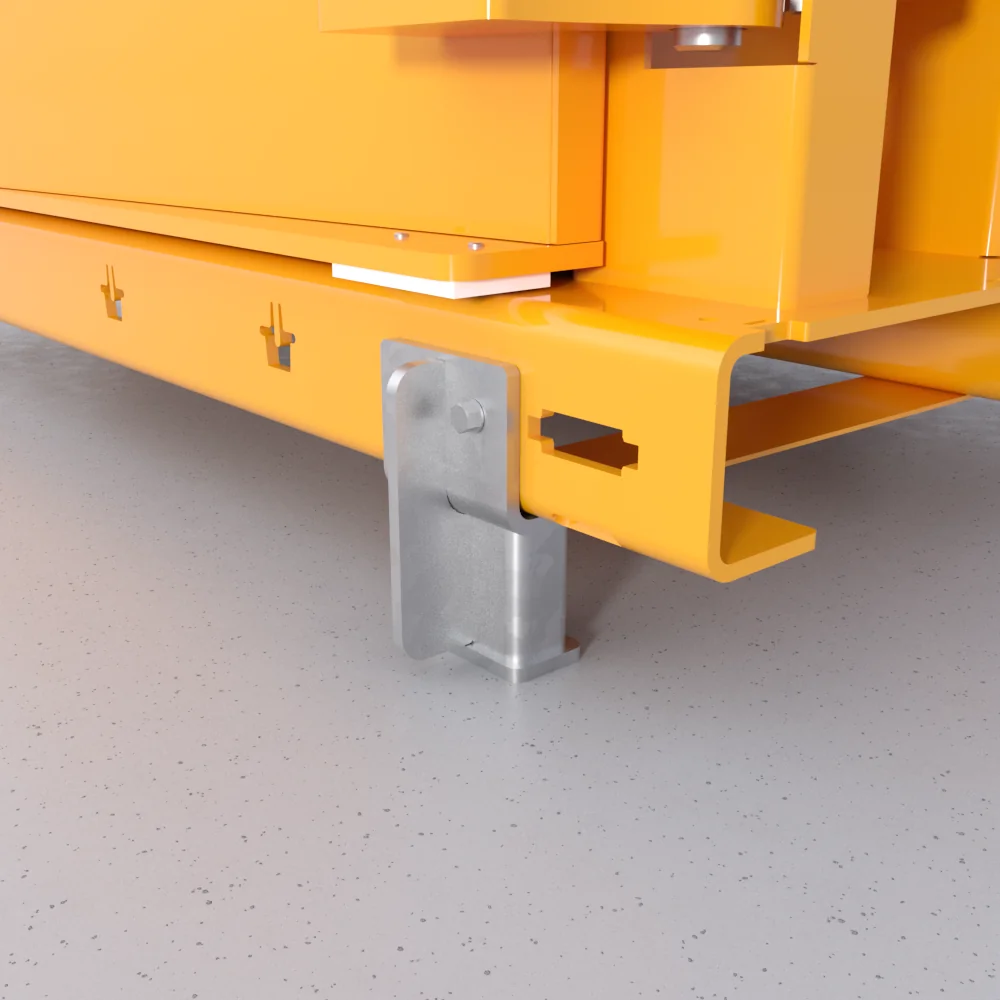

Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground
Quote details
VERTICAL BALER
Baler B20
Overview
How to operate
Safety
Technical specifications
Flexible baler for various types of industries
Compact different types of recyclable materials including cardboard, paper, and soft plastic.
Bales are perfect pallet size
Bale dimension is optimized for transport and finished bales fit on a standard EUR pallet.
B20 – Large scale compression:
- Easy tying of the bales
- High throughput
- Short press cycle
- Front-placed strap rolls for close-to-wall installation
- High compression ratio
- Bales fit on a standard EUR pallet
- Powder Coating provides durable finish in many colors
How does the B20 baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B20 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 200-250 |
| Bale weight plastic foil (kg) | 250-300 |
| Press force (t) | 20 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 62-64 |
| Screen 40 mm (m3/h) | 36 / 21 |
| Dimensions WxDxH (mm) | 1775 x 1030 x 2790 |
| Weight (kg) | 1250 |
| Feed opening WxH (mm) | 1200 x 480 |
| Filling height (mm) | 965 |
| Chamber height (mm) | 1410 |
| Stroke (mm) | 750 |
| Number of ties | 4 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Medium |
Waste types
Waste Volume
Medium
FEED OPENING
1200 x 480 mm
BALE SIZE
1200 x 800 x 800 mm
PRESS FORCE
20 t
BALE WEIGHT
Cardboard (kg) : 200-250Plastic foil (kg) : 250-300
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
which can be harmful over time. Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B20
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B20
Most Common Questions & Answers
Can I get a baler with a door that doesn’t open outwards?
We have different door solutions that do not open outwards. The Vertical Door for our B-series balers is manual and opens vertically upwards to give you more space around the baler – and free access to the chamber from both sides.
The Automatic Sliding Door for our X-series balers is fully automatic and opens vertically downwards. It stays open and is an excellent solution for quick and easy filling.
These door types are suitable if you need to place the baler in narrow places.
How much noise does a baler make?
Our balers are generally very silent. They can be placed directly in the working environment without any negative affect.
The noise level of our B-series balers is very low. They never exceed 57-68 decibels – the equivalent of an air conditioning system or a vacuum cleaner.
However, for whisper low noise level, try our range of X-series balers. They have extra low noise level that never exceeds 59 decibels. The same as conversational speech.
Do you know who can pick up my bales?
Usually your regular waste collector can handle the bales as well. Otherwise, we can connect you to a local recycler that may help you.
Should I place my baler indoors or outdoors?
The baler should preferably be placed indoors. In some cases, it may also be placed outside under a roof, in regions where the general weather conditions are not too cold and rainy.
Be aware that consistently cold surroundings can affect the machine’s performance. If you want to place the baler in a place that is very cold, e.g. a freezer room, potential problems with machine performance can be rectified with a special hydraulic oil.
Please consult with our sales team if you want to place the machine outside or somewhere cold.
Can you customize a solution for me?
Yes. The horizontal balers can be adapted to your specific needs. For this purpose, we consider your internal work flow, waste streams, types of waste, space available and preferred filling options.
Do you have a small machine that can handle cardboard fruit crates?
If you sell fruit and vegetables, you can get rid of your cardboard fruit crates with our range of medium sized balers. They can handle the largest cardboard fruit crates, face pack boxes, and fruit stacker boxes in the market.
You find the dimensions of the filling openings of each baler under the product specifications.
Did you find an answer to your questions? If not visit our FAQ universe.
