HORIZONTAL BALER

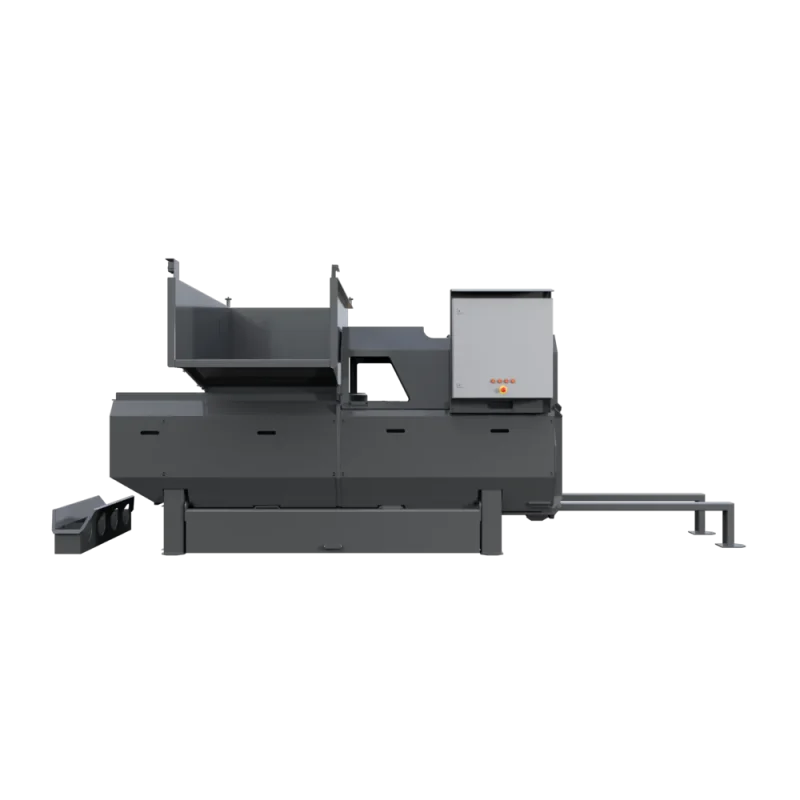

Horizontal baler CC
The horizontal channel baler is a reliable and easy-to-use solution for continous compaction of large waste volumes.
Add to your quote
HORIZONTAL BALER
Horizontal baler CC

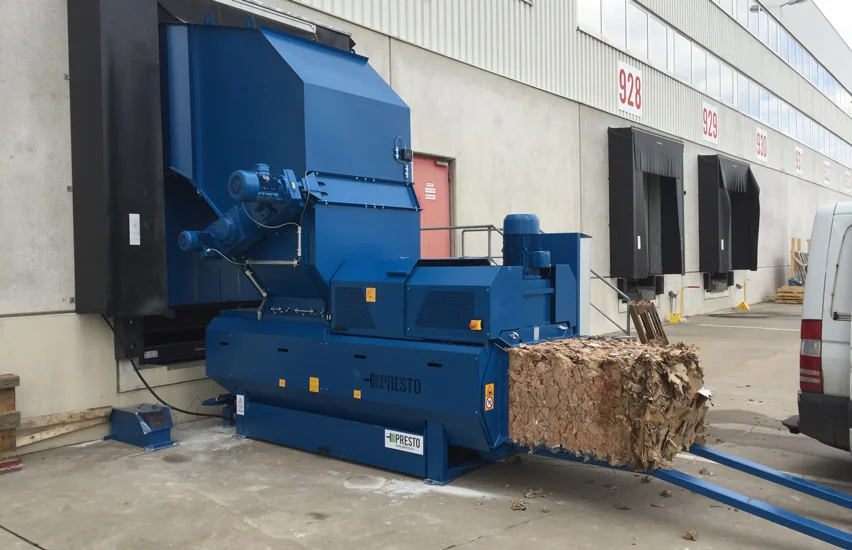

Handle your inside waste more efficiently with a wall hopper. Eliminate going outside and load your waste directly into the baler through the wall.
Wall hopper enables constant baler filling

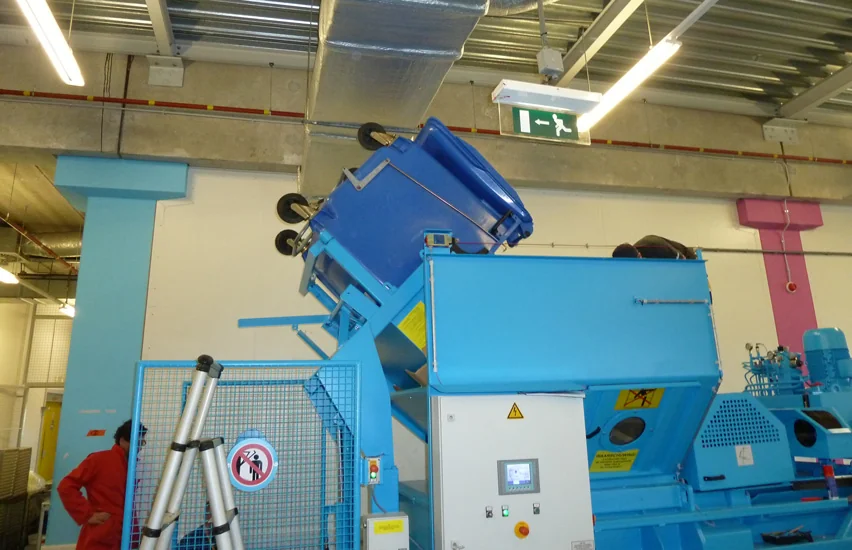

Use a tipping system to empty your full waste bin into your horizontal baler. The tipping system comes in integrated, stationary and movable versions.
Empty your waste bins easily with a tipping system
Quote details
HORIZONTAL BALER
Horizontal baler CC
Overview
How to operate
Safety
Technical specifications
For large needs and limited space
The horizontal balers are suitable if you need an efficient and compact solution with high capacity.
Fully automatic solution
Load the baler continuously and enjoy automatic press cycles and bale tying.
Horizontal balers CC – requires minimal floor space:
- Fully automatic
- Compact solution – requires minimal floor space
- Continuous loading
- Automatic bale tying
- Low noise level
- Flexible output – adjustable bale length
- Extra wide feed opening

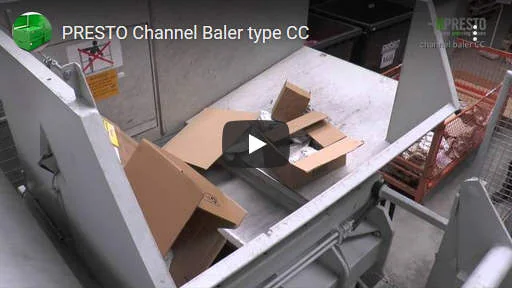

Continuous filling of waste with efficient work flow
- Toss your cardboard or plastic waste into the hopper.
- The press cycle is started by an automatic light barrier.
- Bales are automatically tied and pushed out of the channel.
- Use a pallet jack to remove the finished bales.
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 300-600 |
| Bale weight plastic foil (kg) | 420×450 |
| Press force (t) | 20-70 |
| Waste volume | Medium / Large |
Waste types
Waste Volume
Medium Large
BALE SIZE
750-2850 x 750-1100 x 700-750 mm
PRESS FORCE
20-70 t
BALE WEIGHT
Cardboard (kg) : 300-600Plastic foil (kg) : 420×450
Save money and reduce your CO2e with BRA-IN
Recycling is essential for the environment, and BRA-IN makes it easier. This intelligent waste management solution monitors, analyses, and optimises your operations to help you save costs and reduce emissions.
BRA-IN (short for Bramidan Intelligence) connects all your compaction equipment through a user-friendly IoT platform. It provides a complete 360-degree view for more intelligent waste and recycling management.
Heading for loop
FAQ
HORIZONTAL BALER CC
Most Common Questions & Answers
What can I compress in a horizontal baler?
A horizontal baler can be used to compress soft materials such as cardboard, paper, and shredded PET.
How large are the bales produced in a horizontal baler?
The size of the bales depends on the channel baler. Have look at the product specifications here. Bale weights vary depending on channel baler model and material. Expect bale weights between 200 and 300 kg in the smallest model and 350 and 450 kg in the largest model.
In general, plastic gives the heaviest bales and cardboard and paper the lightest bales.
Where should I install the horizontal baler?
The horizontal baler can be placed both indoors and outdoors. The machine requires a solid foundation e.g. concrete or pavement that can support the weight.
If you place the baler outside, we recommend that you place it under a roof to protect it from wear and tear.
Our sales consultant will help you identify the best place to install your baler.
How do I fill my waste material into the horizontal baler?
We offer a variety of filling options for our horizontal balers depending on your needs, like filling from both sides, from the back, and from the top. Both manual filling and automatic filling is possible.
Please consult with our sales team to learn about the filling options.
What is the cycle time of a horizontal baler?
The cycle time is the time from the press starts till it has returned into position again, and you can continue fill in more waste. The cycle time depends on the machine type and can be as short as 24 secs.
How is the finished bale tied off in a horizontal channel baler?
All horizontal channel balers have automatic bale tying and bale length can be adjusted to your needs and preferences.
